Cabinet Jigs · Pair, with toggle clamps

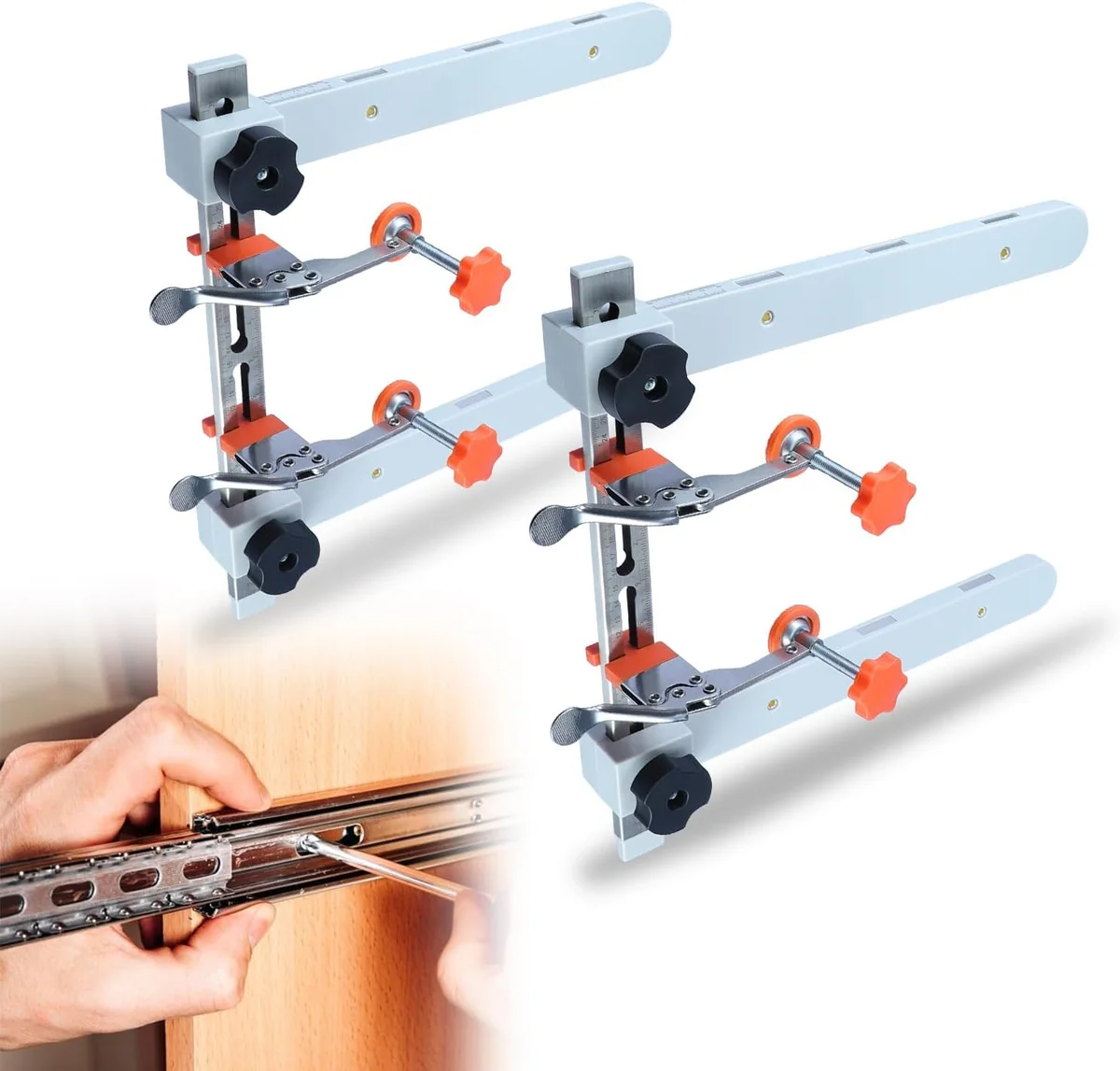

RUITOOL Drawer Slide Jig with Magnetic Support Arms

4.1 47 ratings

$43.67

Set of two

A pair of jigs that hold drawer slides level inside the cabinet while you screw them in. Set the height once and repeat it for every drawer.

Support arms
12 in, magnetic
Slide length
Up to 24 in
Scales
Laser-etched, inch and metric
Clamp
Toggle clamp with rubber pads

Fits

  • Side-mount drawer slides up to 24 in long
Add It to Your Bench on Amazon

Checkout, payment and delivery happen with our retail partner. Price from our update of 1 October 2026. How we update prices

What it does

The Drawer Slide Jig, in three points

  1. Magnets hold the slide

    The 12 in arms carry magnets strong enough to steady a 24 in slide.

  2. Scales on the body

    Inch and metric marks are laser-etched, so you set the height on the jig and skip the tape measure.

  3. Toggle clamp

    A clamp with rubber pads fixes the jig to the cabinet side and leaves no marks.

Specifications

Support arms
12 in, magnetic
Slide length
Up to 24 in
Scales
Laser-etched, inch and metric
Clamp
Toggle clamp with rubber pads
Material
Stainless steel and plastic
Extension
Two bodies join for taller cabinets

At the bench

A drawer runs true only if its two slides sit at the same height and the same setback. This jig clamps to the cabinet side and gives the slide a shelf to rest on. You lock the position, drive the screws, then move the jig to the other side at the same setting. For a tall cabinet, pull the end cap and join the two bodies to reach higher.

Check before you buy

  • Your slides are side-mount and 24 in or shorter.
  • The cabinet side is flat where the clamp sits.
  • You have more than one drawer to fit, which is where repeat settings pay off.

Limits

Pick another one if

The arms are plastic and 12 in long, so a long slide overhangs them and relies on the magnets. That works up to 24 in. Undermount slides that fix to the drawer bottom are not what this jig is shaped for. Buyers rate it 4.1 out of 5, lower than our door jigs, so read the reviews below for the snags.

Same bench

RUITOOL Cabinet Jigs

7 tools, from $9.99. Set them side by side in one table.

All 7 RUITOOL Cabinet Jigs

From the same bench

More RUITOOL tools

Tools that share a bench or a job with the Drawer Slide Jig.

All 7 RUITOOL Cabinet Jigs

Questions

Drawer Slide Jig: answers

How long a slide can it hold?

Up to 24 in. The arms are 12 in and the magnets steady the rest.

Can I use it in a tall cabinet?

Yes. Remove one end cap and connect the two stainless steel bodies to extend the working length.

Does it mark the cabinet?

The toggle clamp closes on rubber pads to protect the surface.
